Service

Find your solution depending on the target distribution system

Antenna or Cable

Virtual Headend is our state-of-the-art Cloud TV platform that is able to transcode on-the-fly a selection of world IPTV channels from modern HLS/DASH formats to DVB (or ATSC) MPEG-TS broadcast standard and stream them to rooms and apartments over coaxial cable. Neither new wiring nor smart TVs nor additional set-top-boxes are required, just plain and simple digital TV sets which are straightforward to use by guests. IPTV channels are received like any other digital terrestrial or clear cable channel. Minimal hardware is needed at customer premises. Various configurations are possible depending on your Internet broadband connection (12,24,36, up to 48 HD-quality channels for each DVB 4xQAM modulator and 9,18,27 or 36 channels for each 4xJ83.B modulator). Complete freedom about channel selection is left to the property manager or local technical staff that interact with the cloud web interface.

Wifi

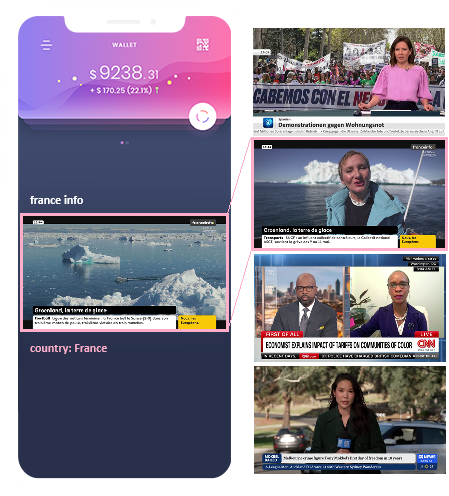

Hoteltube is our innovative service for streaming hundreds of world TV channels to mobile guest devices. Service is delivered through the hotel or community Wifi system and it is enabled by the Virtual Headend Cloud TV Platform. Tipically a QR code is on display at the reception or welcome desk, so users can access the TV service autonomously on a free-to-guest basis. From the manager's perspective, hoteltube is hassle-free because there is no management panel. From the user's perspective, Hoteltube consists of an organized and up-to-date collection of links to world TV channels and an optimized browser interface to recover and watch them directly on their personal devices. No app store software is provided nor needed for watching and that makes the solution very easy to use.

Both

The two services are indipendent from one another and a scenario where both are implemented is the choice to go if you need to serve both in-room displays and mobile devices

Learn More

Virtual Headend Features

Check the benefits of our IPTV to coaxial cable solution for communities, hotels, condos, villages, businesses, private mansions, boats and more

Large choice of TV channels

You choose dozens from a list of hundreds of world IPTV channels which would be impossible to receive via Satellite or DTT, including hotel information TV channels from do-it-yourself videos dropped in Google Drive

Enhanced comfort

Enhanced comfort for international guests who can follow their favourite national programs when abroad

Web managed

Flexible and centralized cloud controller. Your IT department is in control of the service. Software is always the latest version.

Special needs

For protecting particular content or creating special groups of viewers streams can be encrypted in the cloud. In this case a card-less DVB CI module should be inserted in the TV set (Europe only)

Same quality everywhere

The same virtual headend instance can duplicate streams and provide service to different customer sites. That delivers the same TV quality to various locations and this helps keeping the service compliant to your brand standard.

Business-oriented streaming

Efficient network protocols for professional use. Streams are not repeated for each active viewer and network traffic does not depend on the number of concurrent users. Media flows are protected from packet loss by forward error correction. One way TV streaming is also particularly fit for highly restricted business or agency networks that need a security by-design approach.

Save Money

No additional money to invest in the property, service deploys over existing distribution systems and TV screens

Save more money

Hardware is little enough to fit into the palm of your hand, lowering maintenance costs on premises

For operators

For operators that acquire IP-only TV rights, virtual headend represents the missing link to address professional customers who do not intend to waste money in new network wiring or buy new connected TV-sets

Quick response to failures

Automatic failure detection. Virtual headend Cloud TV can send alerts when TV channels are missing before any user can even realize something is wrong

Hoteltube Features

Compared to Virtual headend, Hoteltube differences are as below

  • TV service runs over Wifi instead of antenna or cable coaxial system
  • Hoteltube delivers the TV service to mobile devices instead of normal TV screens
  • No installation of headend hardware is required at all, it's easy as it sounds
  • Viewers get access to the entire list of available channels, not just a selection
  • Hoteltube has no management panel. Nothing to set up or monitor. No IT department is needed.
  • Lower setup costs and monthly fees
  • Media are provided on-demand over TCP as soon as the user calls a TV channel, instead of 24/7 RTP continuous streaming
  • No conditional access for particular groups of viewers is yet available
  • Overall bandwidth depends on the number of active viewers so a proper network infrastructure should be considered
  • For hoteltube automatic failure detection does not apply

Requirements

Check the requirements for our services below

Placeholder

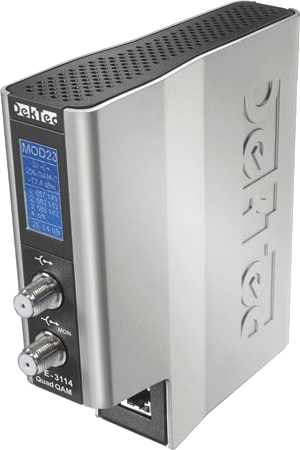

Virtual Headend(World TV channels over Coax)Dektec DTE-3114 IP to 4xQAM modulator or similar appliance (to be installed on-site). Broadband connection with minimum 44 mbps of dedicated downlink speed (for at least 7 DVB channels in HD 720p quality) or minimum 38 mbps (for at least 6 ATSC channels in HD 720p quality). Uplink is not necessary. Fiber optics connection is advised. Appropriate firewall configuration (DMZ or UDP port-forwarding). Public IPv4 static address. DVB (or ATSC) TV-sets should support DVB-C (or J.83B/ClearQAM) and at least the H.264/MPEG-4 codec. Virtual Headend subscription sized to the number of multiplexes. Having an IT department or network-savvy staff is advised.
Placeholder

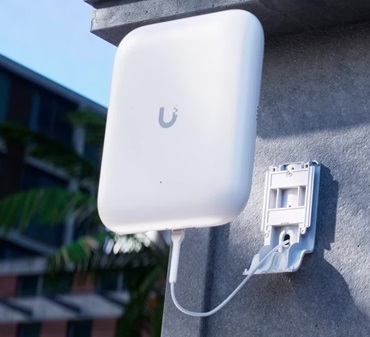

Hoteltube(World TV channels over Wifi)Wifi system for guest access. Adequate broadband connection. Public static IPv4 address. Appropriate reception signage or in-room instructions. Hoteltube service subscription.

Frequently Asked Questions

Check our FAQ below

Can I get a live demo before proceeding any further ?

Yes, sure. Drop us a line in order to obtain your free 4-week test credentials and technical guidelines for evaluation. But consider that one of the two services still needs a small hardware to be installed at your premises and you may want to seek help from your trusted antenna operator. Check the requirements.

What about the list of available TV channels ?

Channel lists are continuosly updated and organized by country. Channel URLs come from both publicly available sources (broadcasters, CDNs, etc.) and satellite recasters that we set up on behalf of customers. Book a demo with us in order to go into detail.

How do I pay ?

Service is made up of a setup fee and a monthly fee. We use Paypal Business to acquire recurring payments, so you can pay either with your credit card or Paypal balance. Prices are not published because they change according to country and audience size. As a rough idea consider that for a 50-room hotel placed in Europe we charge less than EUR 100,- a month for a 24-channel (2-multiplex) Virtual Headend cloud service. Seasonal 6-month plans are also available. Please get in touch for additional information.

What if I need help ?

We have a help line during office hours (central european time) by phone, e-mail or Whatsapp/Telegram. Spoken languages are english and italian. Consider that we offer assistence only to managers and technical staff, not to viewers and guests.

Do you have any further documentation ?

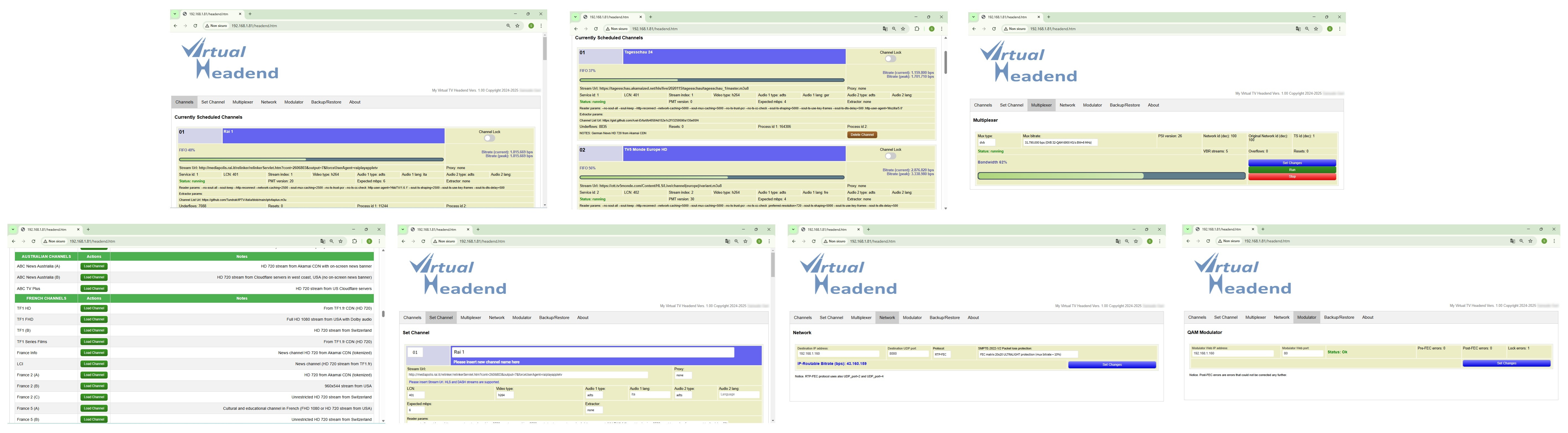

You can see some screenshots of the Virtual Headend web interface which will be available to your technical/IT staff by clicking below.

In which countries do you offer your services ?

There are really no limits to that. But sometimes coverage may not be optimal in your area or your connection may not be adequate. That's why we recommend to perform a free test before subscribing. You should also consider that for now we support only DVB and ATSC/J.83B/ClearQAM TV screens over coax.

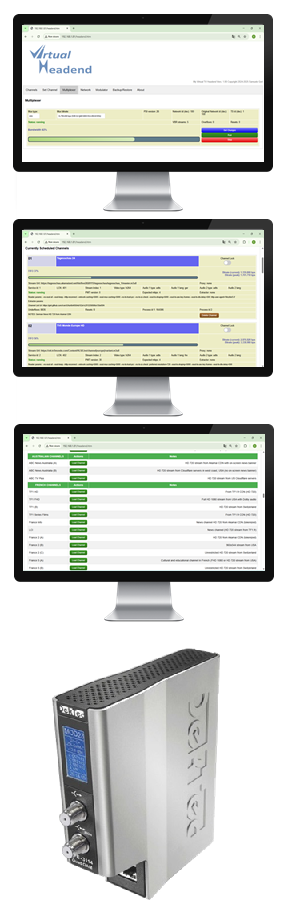

Virtual Headend sample web interface
